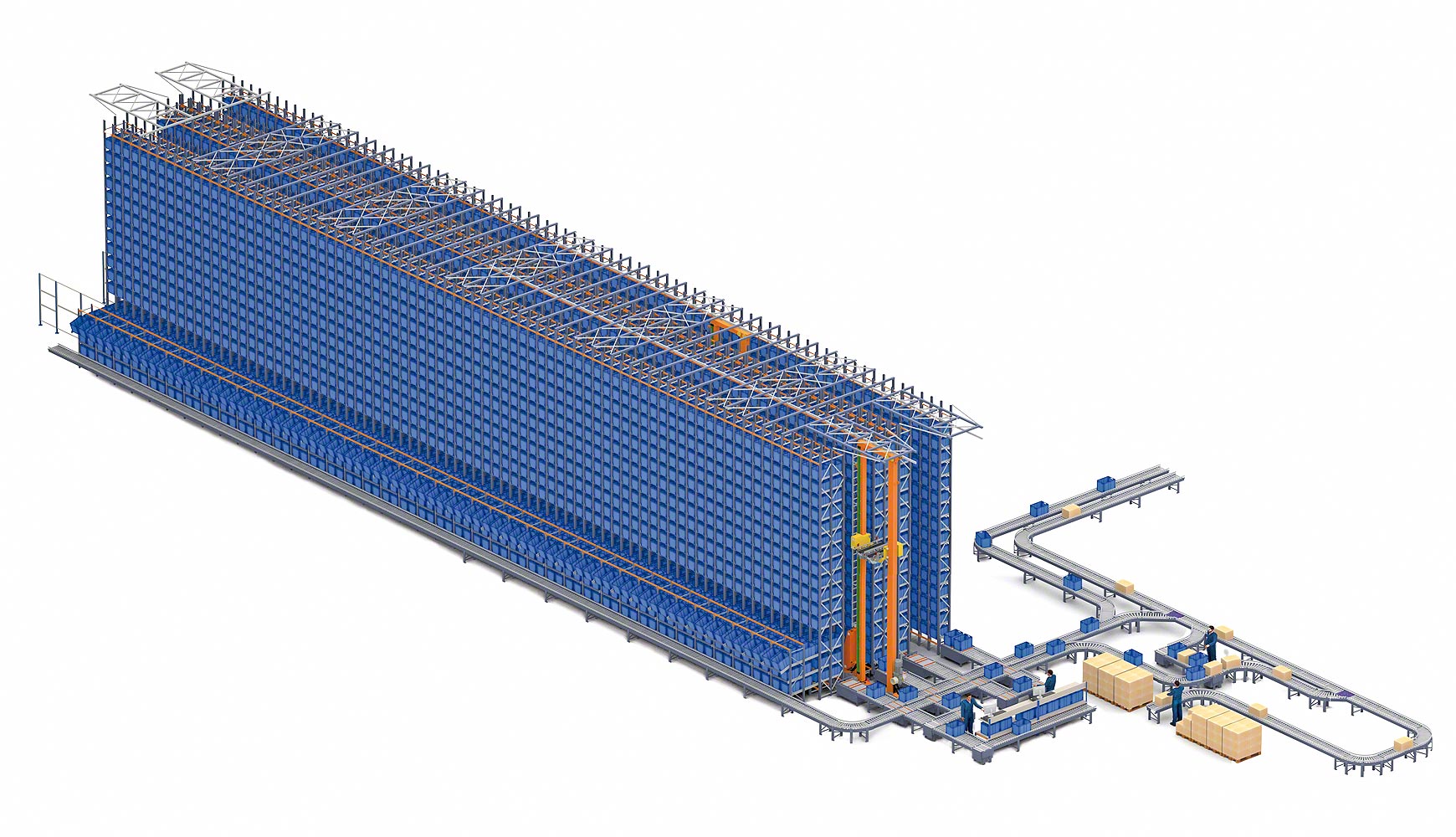

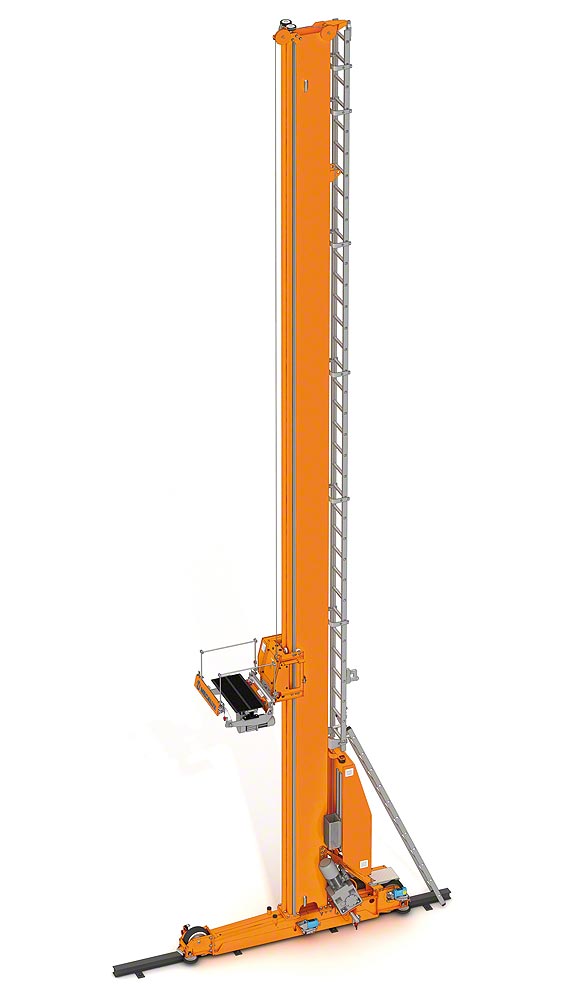

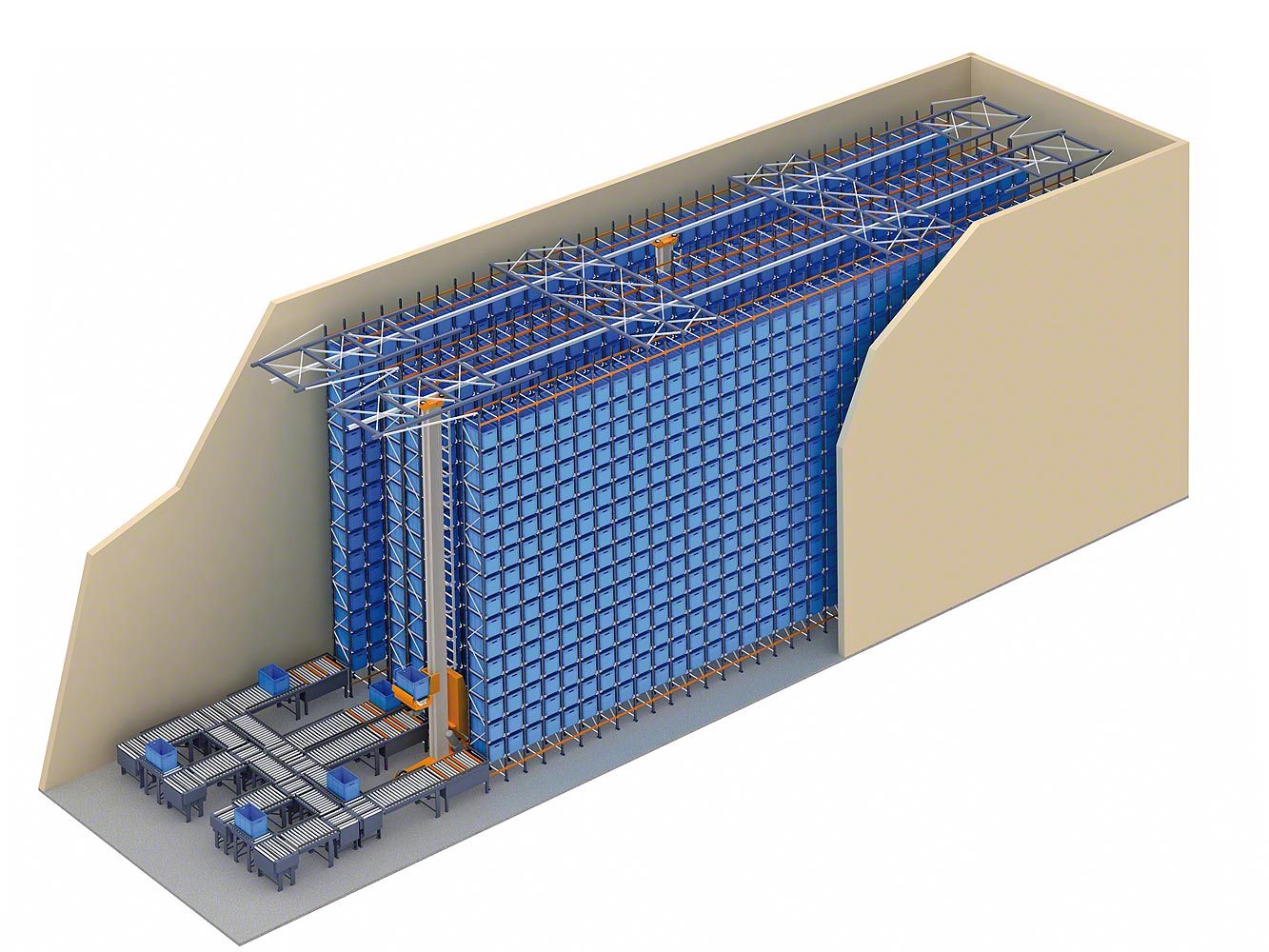

Automated warehousing - Container Stacker

long span shelving, belonging to a storage shelf, shelf shelf type.

carton flow racking, also known as sliding racking , using roll aluminum alloy, sheet metal and other fluency, using the dead weight of the cargo shelf, from one channel inventory, the other channel to achieve advanced first out, convenient storage, and a replenishment of multiple goods.

The light-duty Shelving are composed of columns, beams, laminates and steel safety pins. The overall design of the shelves is bolt-free, plug-in combined structure, beautiful appearance, safe and firm, easy to install and disassemble, columns and beams can be unlocked by self-weight

Mezzanine floor racking adopt the layer type design, make the upper and lower body of the shelf add pedestrian passageway at the appropriate height, design into several storeys pavilion, the shelf has the facilities such as staircase and cargo hoist, so as to facilitate the goods to be suitable for the storehouse higher.

gravity roller track and slight slope Gravity Racking so that the tray can slide. It is introduced at one end of the higher track, and the goods are slid to the other end by gravity and velocity control, from which the goods are extracted.
The first-in-first-out storage system is adopted to make the movable storage complete product turnover and carry out the first-in-first-out operation of the tray thoroughly. This trait is ideal for short-term storage.

Cantilever racking suitable for storing long materials, ring materials, plates, pipes and irregular goods. Cantilever can be single or double-sided, according to the bearing capacity can be divided into light, medium, weight type three. The cantilever shelf has the characteristics of structural stability, good load capacity and high space utilization ratio.

Long Span racking are designed for manual storage of goods. By making full use of the warehouse height, the operator can be raised to the required height the operator to the required height, and pass through the passage between the shelves.

Long Span racking are designed for manual storage of goods. By making full use of the warehouse height, the operator can be raised to the required height the operator to the required height, and pass through the passage between the shelves.

The mobile cantilever shelf adds a moving track on the basis of the cantilever shelf. This design saves storage space and increases the storage capacity of goods

The mobile pallet shelf adds a moving track on the basis of the pallet shelf. This design saves storage space and increases the storage capacity of goods

Light cantilever shelf

Angle steel type laminated shelf

Hoist hole laminated shelf

Carton Flow Racking also known as roller wheel shelf, slip shelf, is a kind of fluency bar fixed on the shelf at a certain angle, the shelf stored in the logistics box under the action of gravity sliding down, so as to achieve one-way flow of goods transport. With electronic labels, the information management of goods can be realized.

Mezzanine floor racking adopt the layer type design, make the upper and lower body of the shelf add pedestrian passageway at the appropriate height, design into several storeys pavilion, the shelf has the facilities such as staircase and cargo hoist, so as to facilitate the goods to be suitable for the storehouse higher, the goods variety is more, the quantity is less.

The steel structure platform refers to the use of square pipe, round pipe, H section steel or special C type, clasp beam as the main and auxiliary load bearing beam of the floor bearing layer, which is connected according to the connection mode required by the steel structure design code A shelf form in which high strength bolts and special fasteners are used to connect various parts and floor panels.

Composite shelf is a kind of shelf customized according to the warehouse. The customized shelf can be a variety of shelf types, such as laminated shelf, cantilever shelf, pallet shelf, etc. the utilization rate of the warehouse is very high

Beam shelf, also known as pallet shelf, adopts plug-in combination equipment matching structure, optimizes section design and high quality just now. The crossbeam and column are connected with plug-in link and equipped with safety pin to ensure the safety of crossbeam and column connection during forklift operation. Convenient and flexible storage, can be equipped with forward battery forklift, ordinary forklift and stacker and other handling and access equipment.

Automated Stereo Warehouse (AS/RS) is a complex automation system composed of stereoscopic shelf system, rail roadway stacker, incoming and outgoing pallet conveyor system, dimension detection bar code reading system, communication system, automatic control system, computer monitoring system, computer management system and other auxiliary equipment such as wire and cable bridge distribution cabinet, tray, regulating platform, steel structure platform and so on.

Automated warehousing pallet conveying system

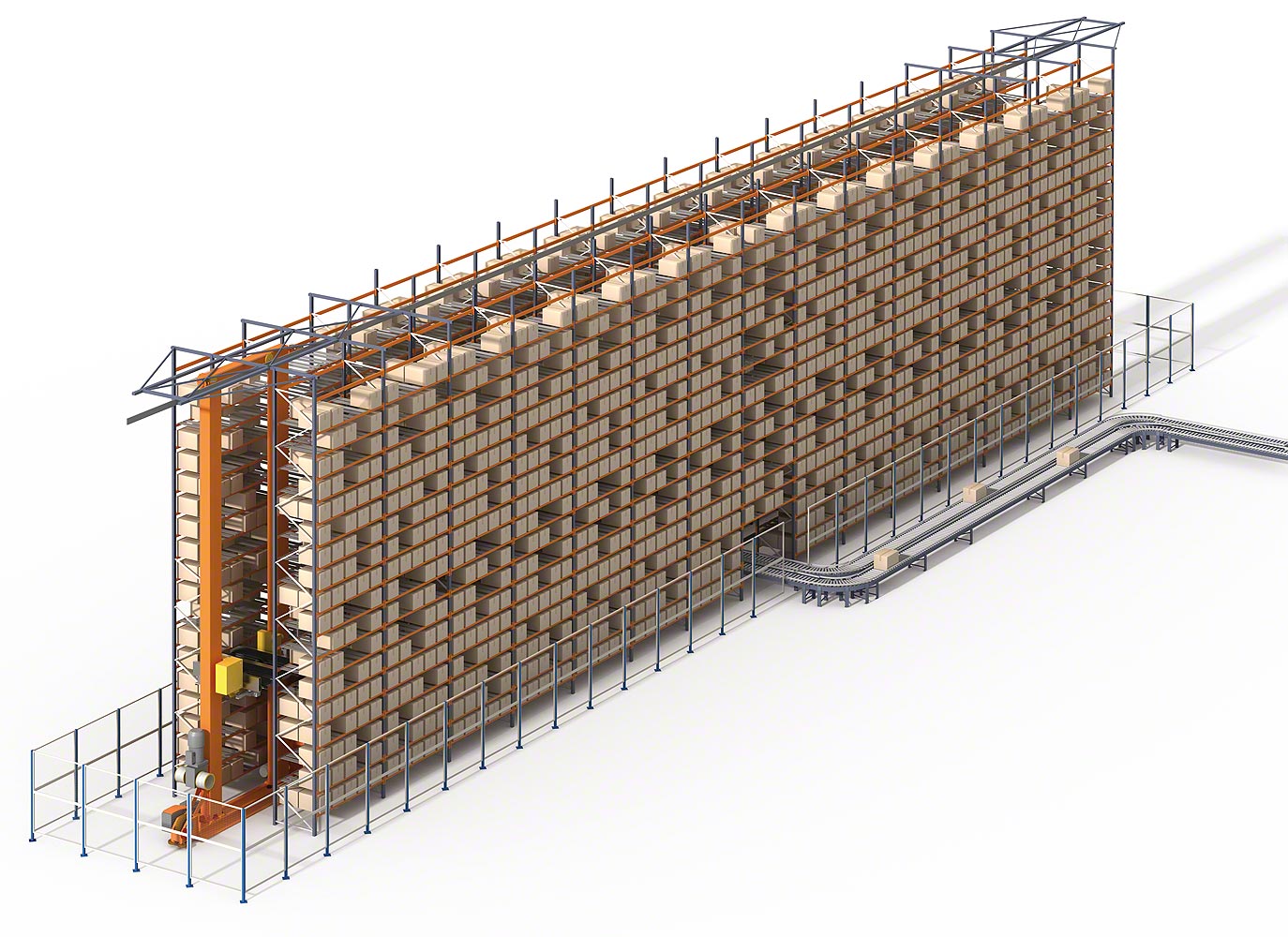

Automated warehousing - pallet stacker

Automated warehousing - three side stacker

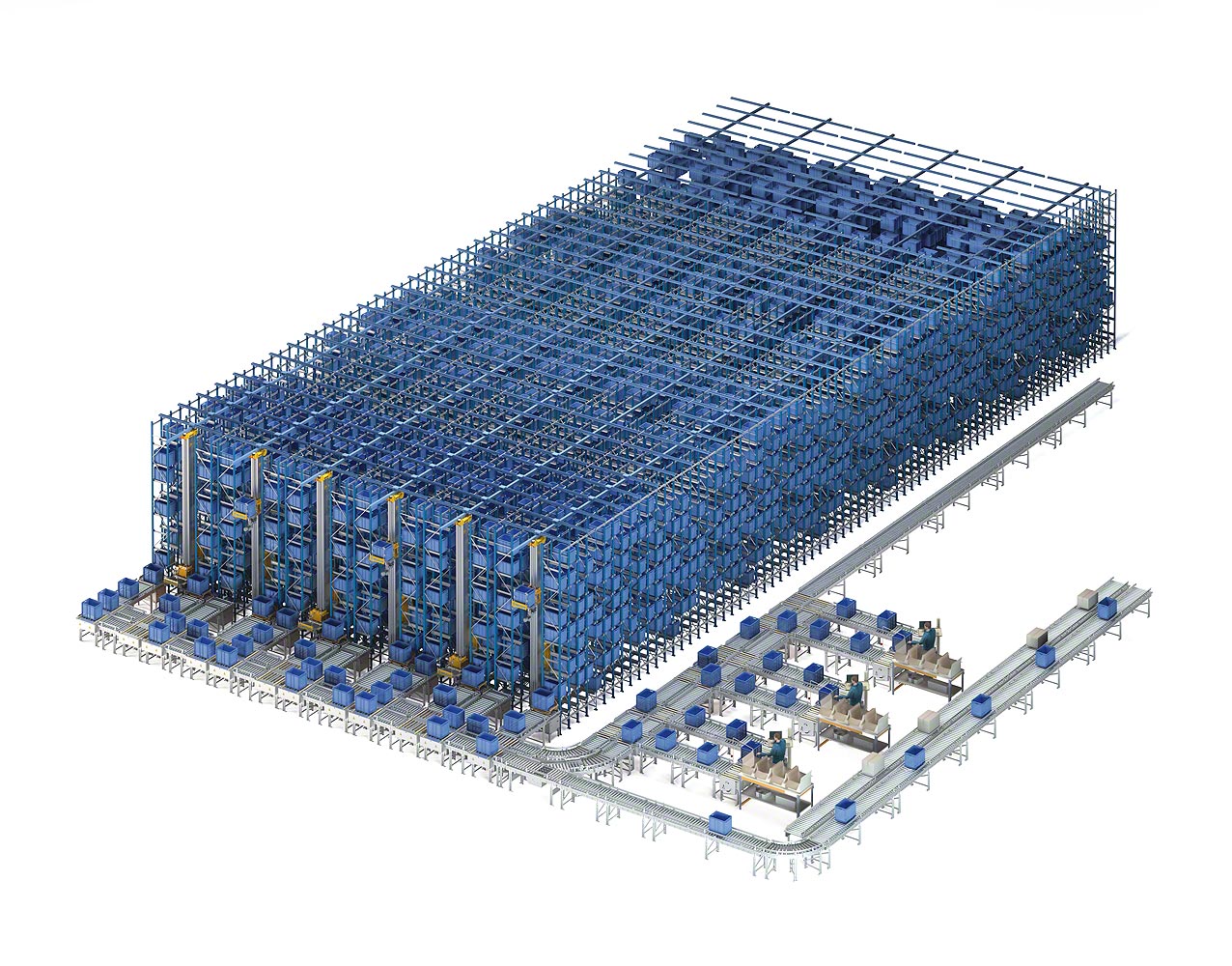

Automated warehousing - container handling system
